HIGH-SPEED ROLL-UP DOORS
Safe, reliable HIGH SPEED ROLL-UP DOORS made in Japan
UNIFLOW’S HIGH SPEED ROLL-UP DOOR reduces energy consumption and optimizes health and safety management for production and distribution in factories.
Our HIGH SPEED ROLL-UP DOORS are produced in our own factories using parts made in Japan, ensuring our products to be user friendly, as well as safe and reliable.
UNIFLOW’s HIGH SPEED ROLL-UP DOOR can be customized the dimensions suitable to the sites or providing wind resistant performance and option parts according to every customer’s needs.
Largest dimension（Maximum size）
SMOOTHER： W10000mm×H6000mm
JETTER： W4500mm×H4500mm
Please see each model page for more details of products and CAD download.

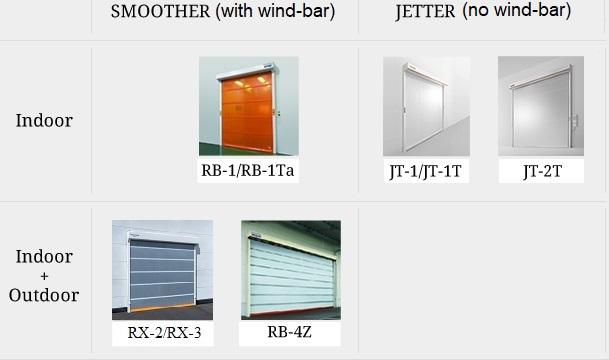

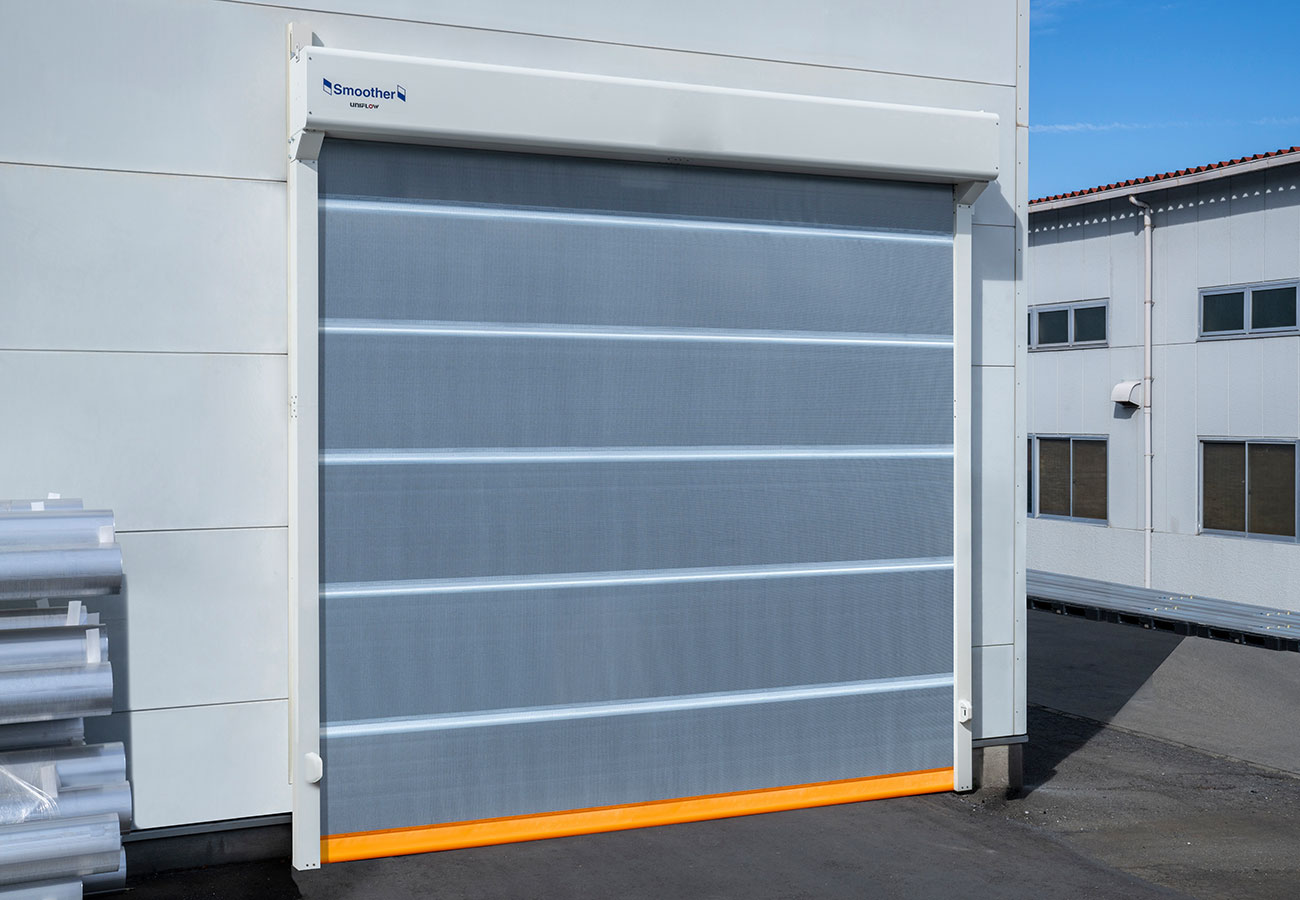

SMOOTHER (With wind-bar)
For outdoor installations or where wind-resistant doors are required.

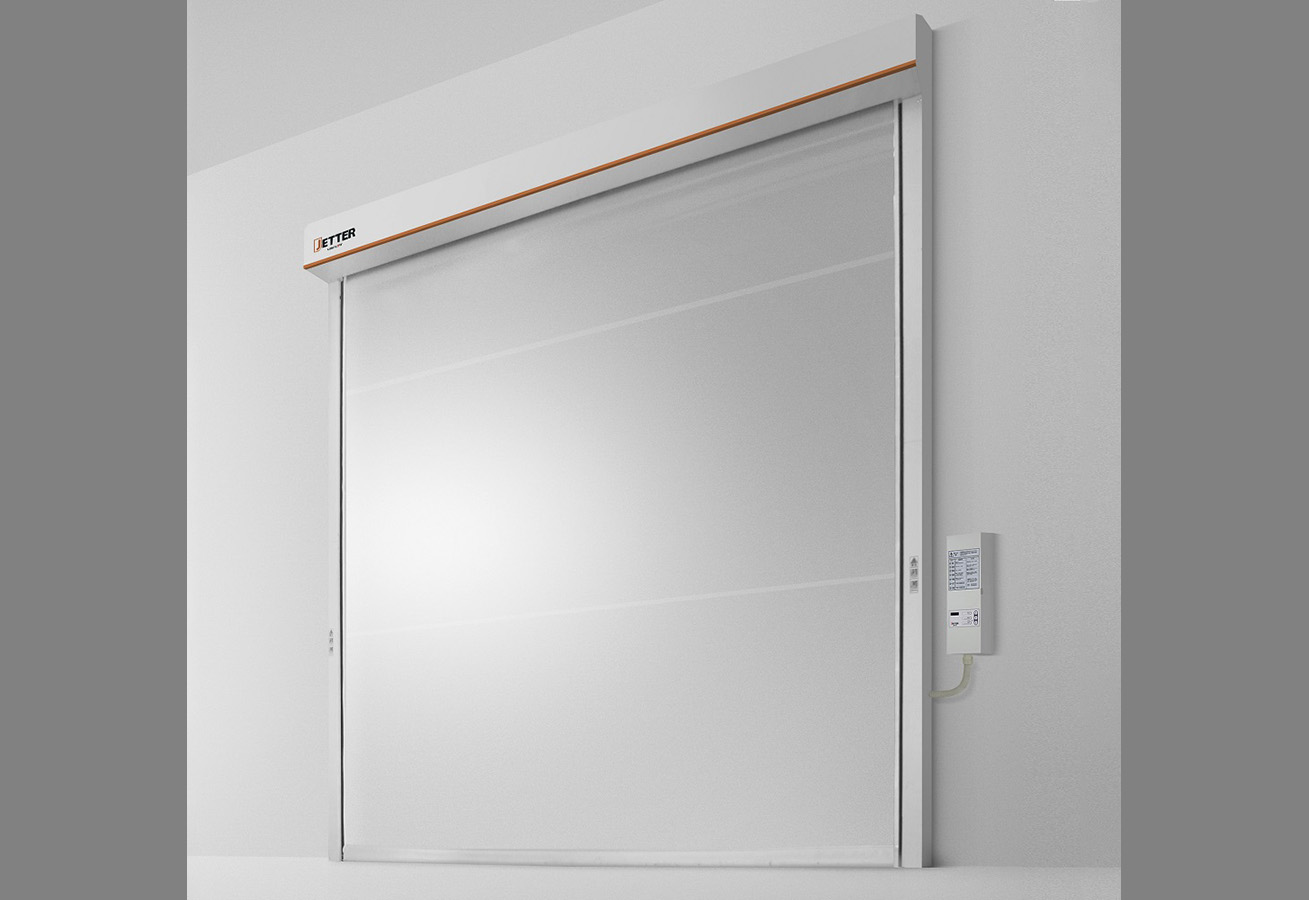

JETTER
For indoor installations or where there is mainly human traffic.
Features
Quick operation improves energy and cost efficiency.
Our current high-speed roll-up door ascends up to 2.0 m/s, which is more than 15 times faster than rolling steel door. The rapid curtain movement minimizes user waiting time, which in turn increases work efficiency to accelerate the distribution. Also with substantial reduction in the inflow and outflow of air, higher energy efficiency is achieved.
Highly wind-resistant
With excellent wind resistance, our roll-up door can reliably operate even in bad weather, without interfering production and distribution. The model with wind-bar, ‘SMOOTHER’, is recommended for opening exposed to strong wind and/or pressure differences.

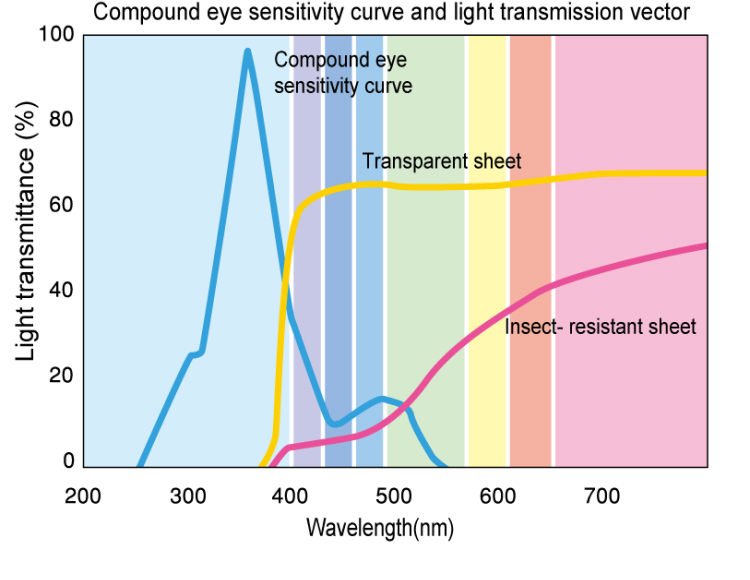

Insect-proof
Food contamination from a foreign substance is mainly caused by insects. Our insect-proof sheet cuts the range of light waves(around 350nm), sensed by insects to prevent them from entering the buildings.

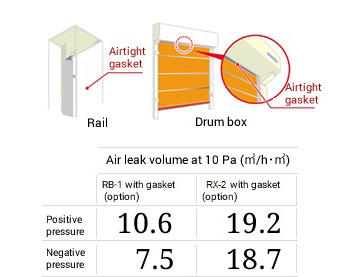

Airtightness
UNIFLOW’s HIGH SPEED ROLL-UP DOOR provides the industry’s top-class airtightness. The airtight gaskets hermetically seal gaps between doors to prevent insects and dust.
Safety
UNIFLOW high-speed door includes a wide range of safety features as standard. We also offer a number of optional safety enhancements.
- ・The phototube sensor (as standard)
- ・Soft bottom-edge prevents impact
- ・Backup power source(optional)
- ・Safety button for emergency stop etc.
Long product life
It is designed to withstand 500,000 roll-up/down actions as a standard. Motors made in Japan and other reliable components provide a long service life.
Technology
Since 1991, we have engineered, built and provided our clients with quality roll-up doors.
With that experience and capacity to adopt new technologies ahead of others, we hold a key position in the competitive Japanese market.
New functions of RX

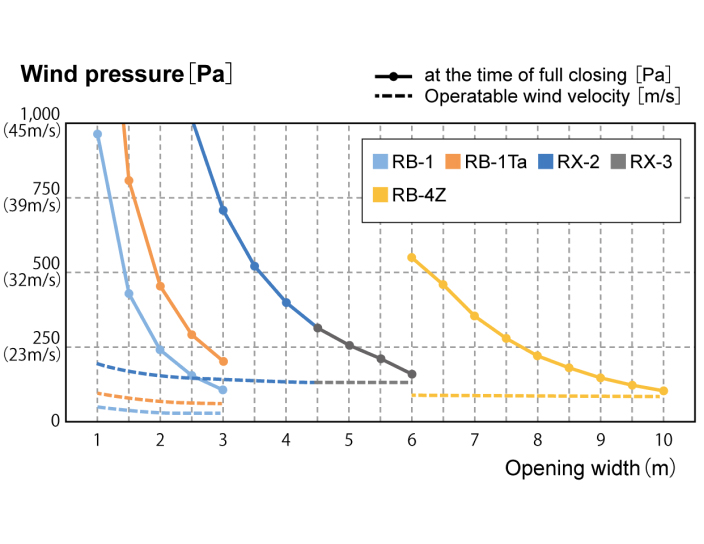

Wind-pressure resistance is greatly improved.

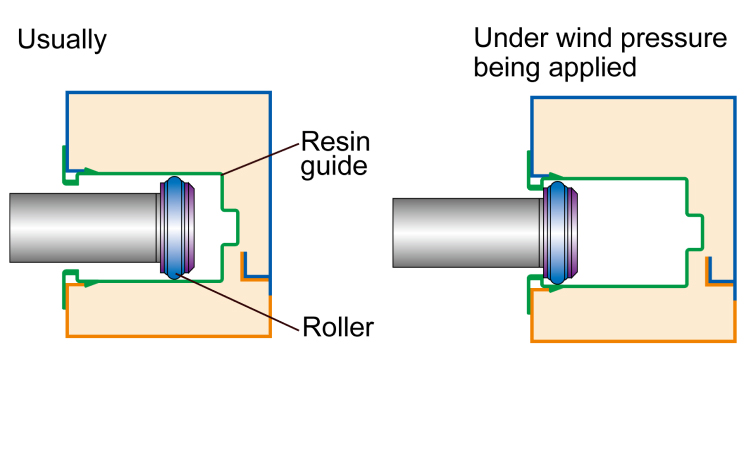

RX-series withstand wind pressure and operate stably under strong wind by adopting the end part of the roller and renewed structure of the rail.

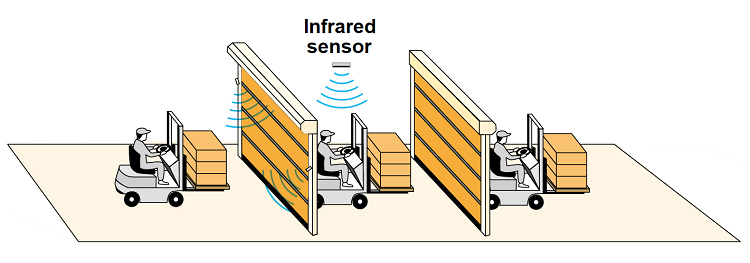

Simple-Interlock
Simple-Interlock which can be activated by 1 unit of infrared sensor in a narrow frontroom.(optional)

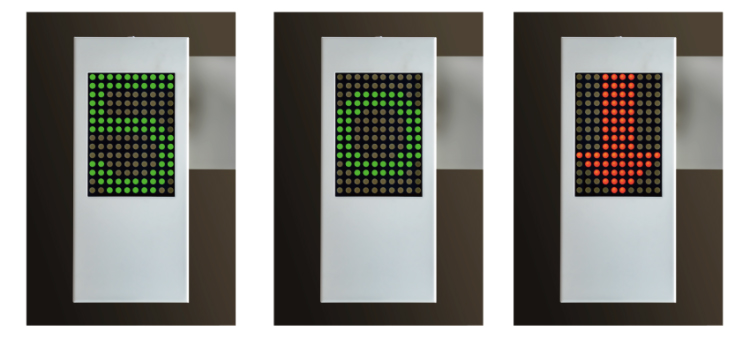

The countdown indicator
To prevent from running-in of users (optional).
※The display will be difficult to see in bright places.
To prevent malfunction, do not install in direct sunlight.
Compatible with voltage specification in Southeast Asia.
Single phase AC 200-240V
There is no need to procure a transformer on site because our control box is based on single-phase 200 to 240V, which is compatible with the voltage specification in Southeast Asia. (PDF)
*Excludes some sizes of SMOOTHERs

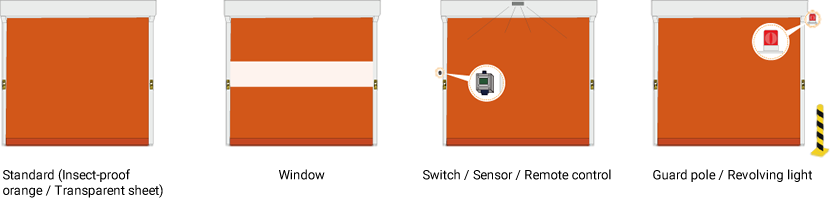

A wide range of option parts.
Our dedicated sales, service and support team will deliver as well as customized solutions such as type of sheets, sheet windows, switches, sensors, revolving lights, etc. that best suit your specifications.
Recommend applications
Download Catalogs
Please click on the button to download a PDF catalog.
HIGH-SPEED ROLL-UP DOOR
product line

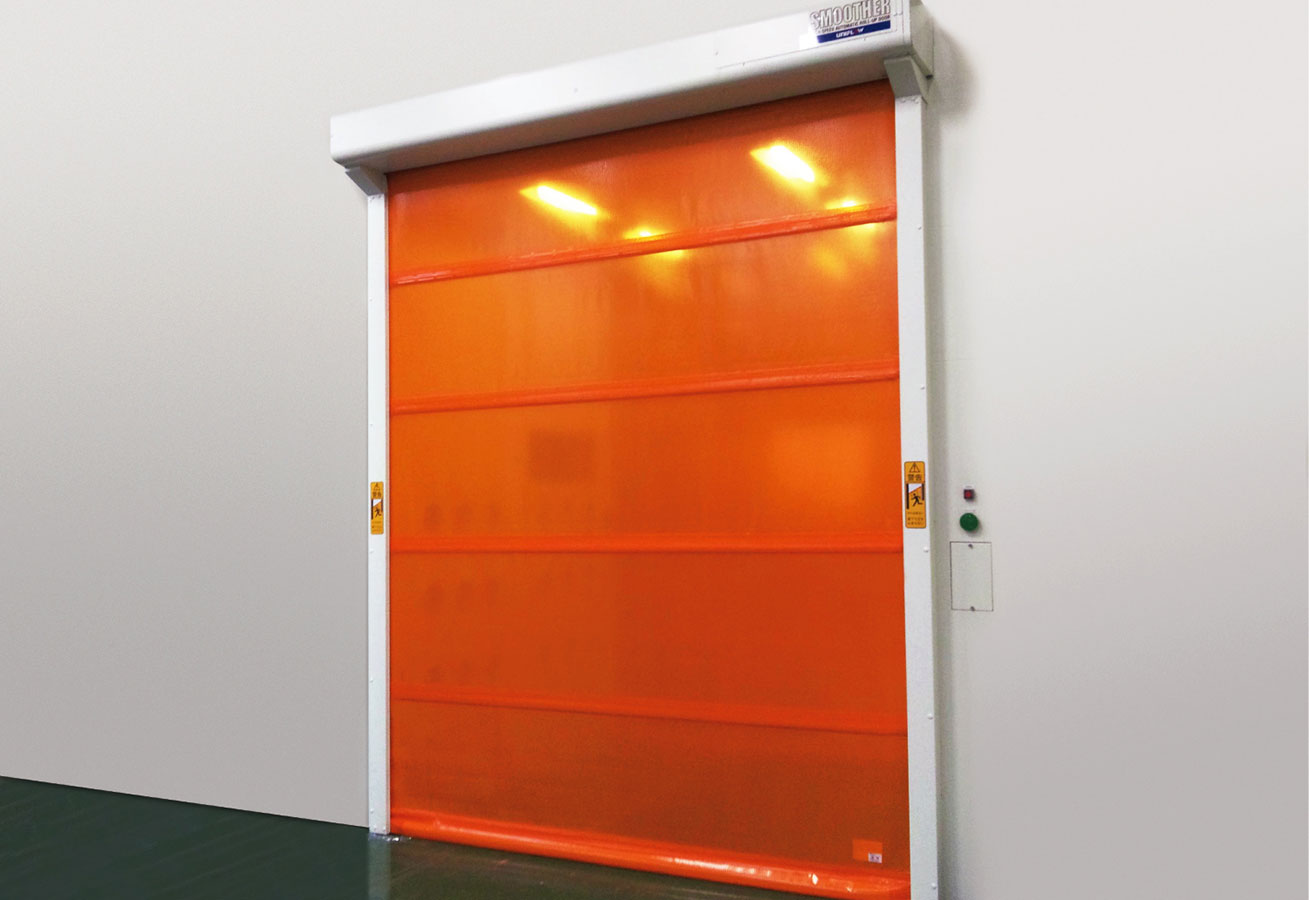

RB-1 (Built-in control panel)/RB-1Ta (External control box)
Specifications
- Width
- W 800-3000 mm (RB-1)
W 1000-3000 mm (RB-1Ta)
- Height
- H 900-3000 mm (RB-1)
H 1000-3000 mm (RB-1Ta)
- Sheet speed (Open)
- 1.3m/s
- Sheet speed (Close)
- 1.0 m/s
- Application
- For indoor use(RB-1) /
For outdoor use (RB-1Ta)
Compact, space-saving roll-up door with maximum opening
Features
Compact high-speed door suitable for wide range of indoor applications.
This reliable door solution for logistics ensures smooth and quiet operation and prevents dirt, dust, and air transfer between internal spaces.
Compact design to maximize opening spaces
Highly airtight
Backup power source
Compatible with voltage specification in Southeast Asia
＊Excludes some sizes of SMOOTHERs

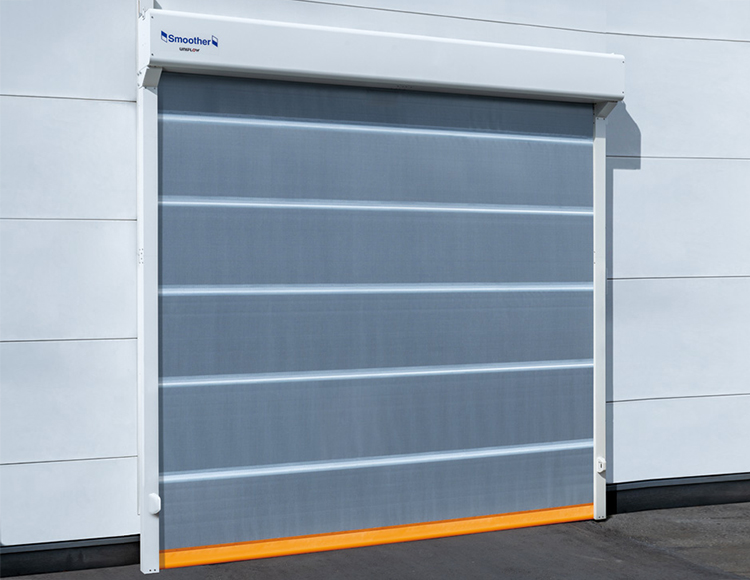

RX-2/RX-3 (External control box)
Specifications
- Width
- W 800-4500 mm (RX-2)
W 4501-6000 mm (RX-3)
- Height
- H 1000-5000 mm (RX-2,3)
- Sheet speed (Open)
- 1.2 m/s(RX-2)
0.8 m/s(RX-3)
- Sheet speed (Close)
- 0.6 m/s
- Application
- For indoor and outdoor use
Wind-pressure resistance is greatly improved by the redesigned rail construction.
Features
An efficient high speed door suitable for external applications. Steel wind bars and re-new rail construction are used to provide exterior doors with wind resistance of up to 122 km/h.
It offers smooth and quiet operation, and helps protect the building from dirt, dust, noise, and heating or cooling losses.
Highly wind-resistant
The renewed control board having multifunction
(9 stages of ascending/descending, 5 stages of slowing-down)
The flexibility of the safety sensor mounting position is improved
Countdown indication (optional)

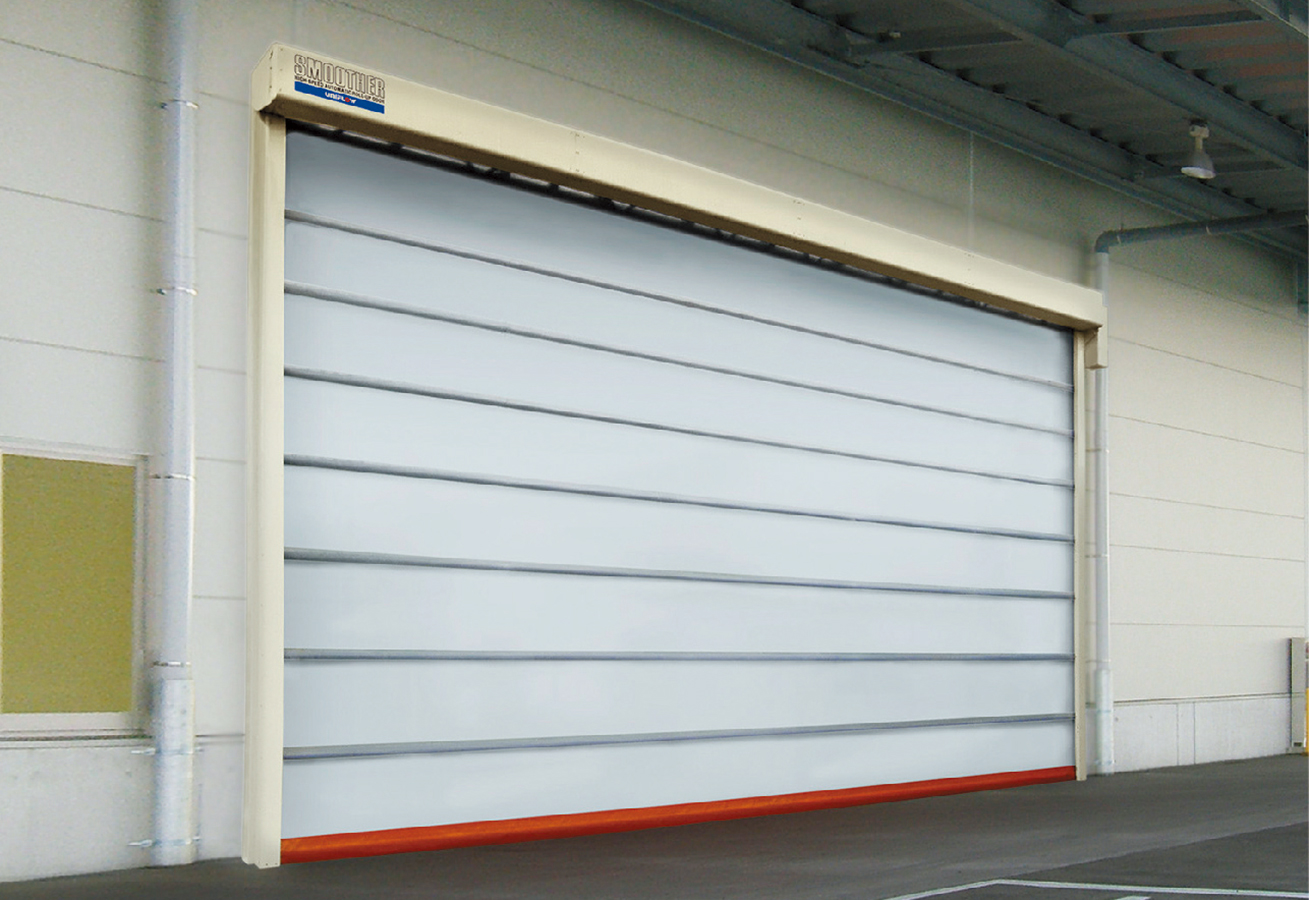

RB-4Z (External control box)
Specifications
- Width
- W 6000-10000 mm
- Height
- H 2000- 6000 mm
- Sheet speed (Open)
- 0.6 m/s (6m＜W≦8m)
0.5 m/s (8m＜W≦10 m)
- Sheet speed (Close)
- 0.5 m/s
- Application
- For indoor and outdoor use
The largest roll up door in the industry.
Features
A durable High speed door designed for entrances with large dimensions.
For large utility vehicles, this model caters to a large effective opening, with a width of up to 10 m and a height of up to 6 m.
It has an excellent stability, and is ideal, for example, for large goods reception areas.
The industry’s highest level of wind resistance
・Wind resistant up to 29.3 m/s（≒105km/h）, reinforced wind bar on curtain.
・Emergency button on control panel , which allows a forceful stop of the door.
・Photoelectric sensors for safety protection.

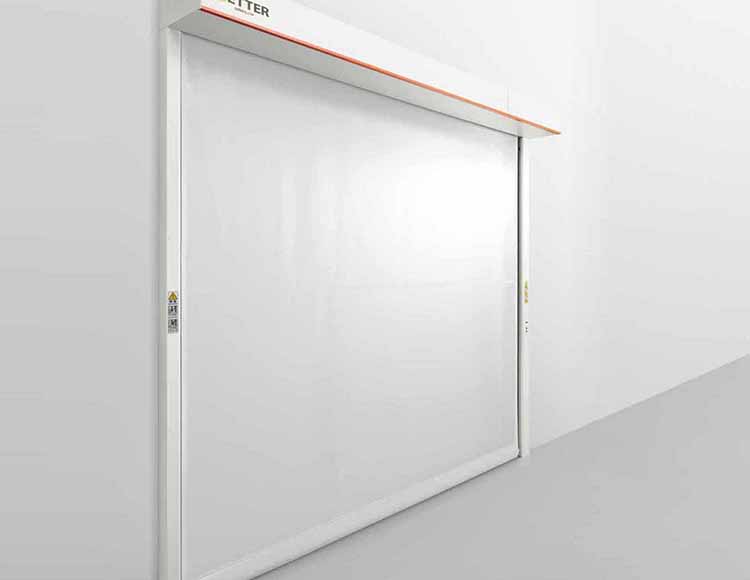

JT-1(Built-in control panel)/JT-1T(External control box)
Specifications
- Width
- W 900-3500 mm (JT-1/JT-1T)
- Height
- H 900-3000 mm (JT-1/JT-1T)
- Sheet speed (Open)
- 2.0 m/s
- Sheet speed (Close)
- 1.5 m/s
- Application
- For indoor use
Slim and smart ROLL-UP DOORS
Features
Wind bar-less structure for safety design. Without any reinforced hard bar, the flexible curtain reduces damage caused by collisions. When in contact with a descending curtain is detected, the curtain instantaneously reverses and ascends to ensure safety.
Automatic curtain recovery
Easy emergency evacuation
Compact design
Airtightness
JT-2T(External control box)
Specifications
- Width
- W 1000-4500 mm
- Height
- H 1000-4500 mm
- Sheet speed (Open)
- 1.5 m/s
- Sheet speed (Close)
- 0.7 m/s
- Application
- For indoor use
Medium-sized roll-up doors for flow of people and objects.
Features
Medium-sized roll-up door for versatile applications, that caters to openings of up to 4.5m in width and height.
Wind bar-less structure for safety design. Without any reinforced hard bar, the flexible curtain reduces damage caused by collisions. When in contact with a descending curtain is detected, the curtain instantaneously reverses and ascends to ensure safety.
Easy emergency evacuation
Compact design
