SWING DOOR
UNIFLOW’S SWING DOOR

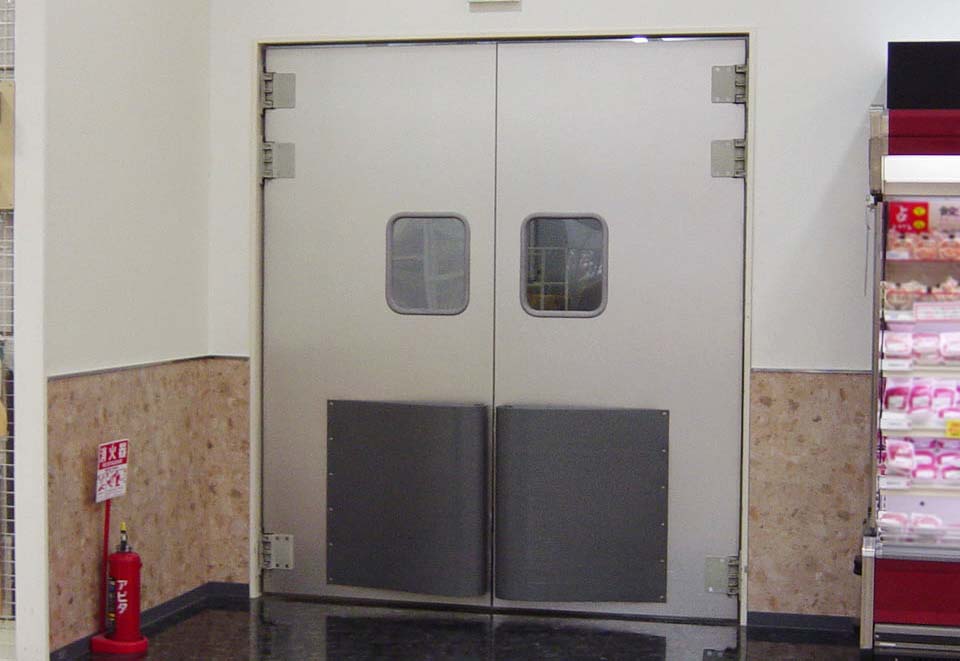

UNIFLOW is a helpful supplier for all your industrial, retail & supermarket door needs. From kitchen doors to swinging traffic doors to the industrial impact doors we’re renowned for, let us make your job easier by taking care of all the details at one time.
・The door opens with a light touch and gently closes automatically.
・Act as visual and thermal separation between retail space and backroom.
・Gaskets can be equipped to control temperature in the rooms. As well as prevent unwanted wind, dust and even sound.
UNIFLOW swing doors are tailor made with it’s unique designs and specifications for each models. They are highly durable, have a long product life, and need almost no maintenance. The door can be in single or double action based on the site opening dimension.
Optional parts such as door bumpers, hand plates, and decorative sheets can be added according to on-site requirements.
Please see each model page for more details of products and CAD download.
Features
Mechanizm of SWING DOOR
UNIFLOW’S SWING DOOR has a no-spring mechanism consisting of UNIFLOW’S mechanism utilizes an inclined offset shaft, that works on the weight of the door alone.
Operation of UNIFLOW’S SWING DOOR
- Push the bumper with a cart.
It closes itself gently and stops at the center after the door swings.
SWING DOOR action
The upper and lower components are shifted non-vertically for the hinge used for SWING DOOR.
The door rises to open obliquely upward and then returns to the original position using its own weight.
A wide range of options.
Our dedicated sales, service and support team will deliver as well as customized solutions such as windows options, reinforcements(bumpers), and hand plate that best suit your specifications.

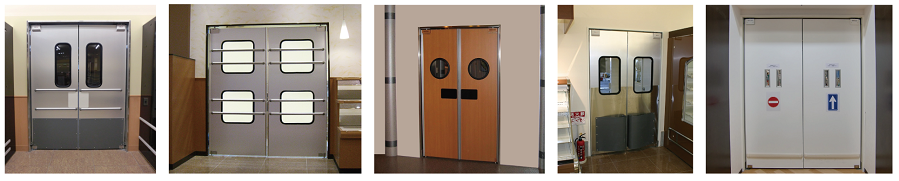

Custom Windows
You can customize the shape and size of the windows on your door, to provide visibility and enhance the appearance of the door.
Custom windows are an excellent choice for kitchens and backyard of store where there are busy traffic patterns.
SWING DOOR
product line

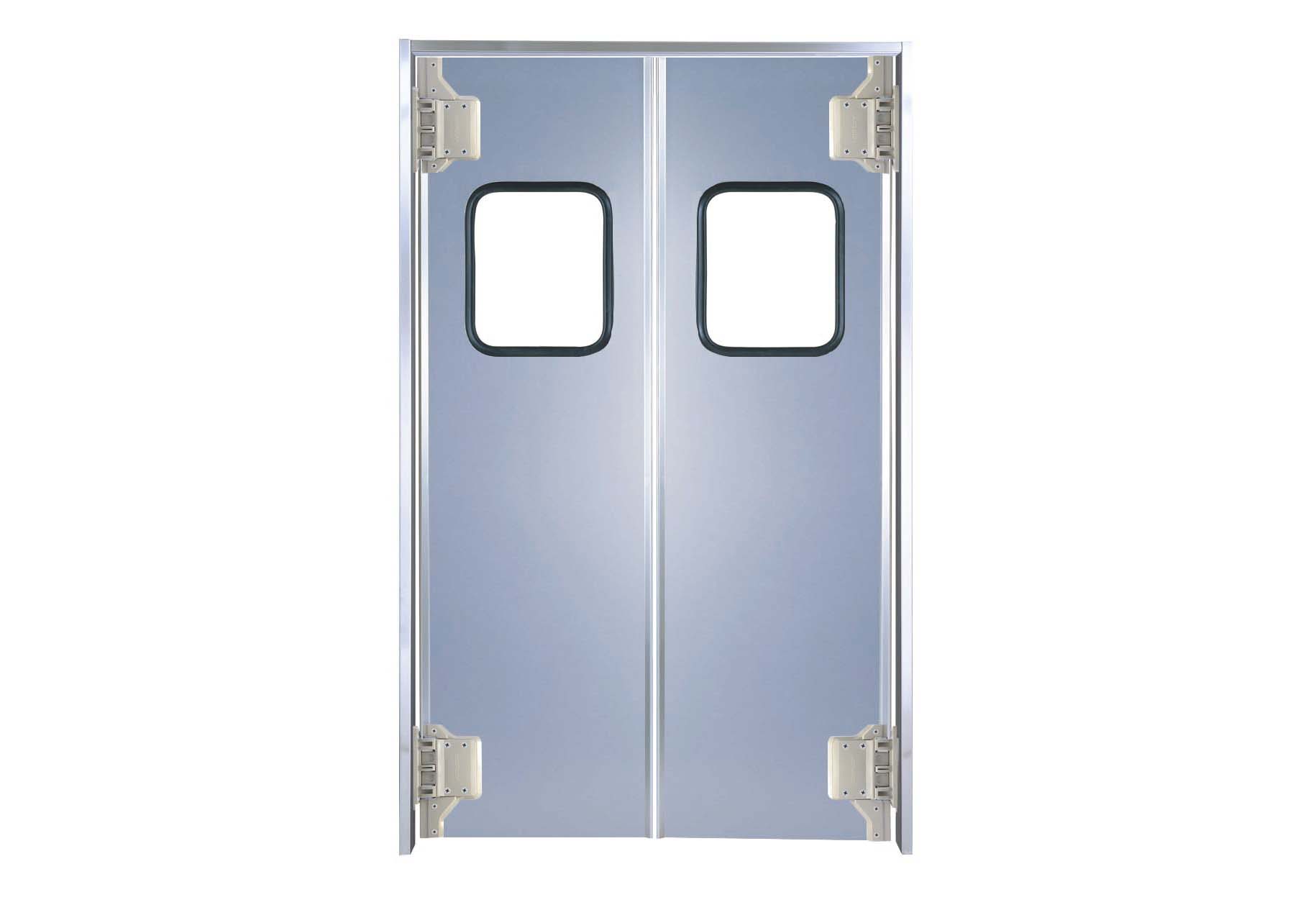

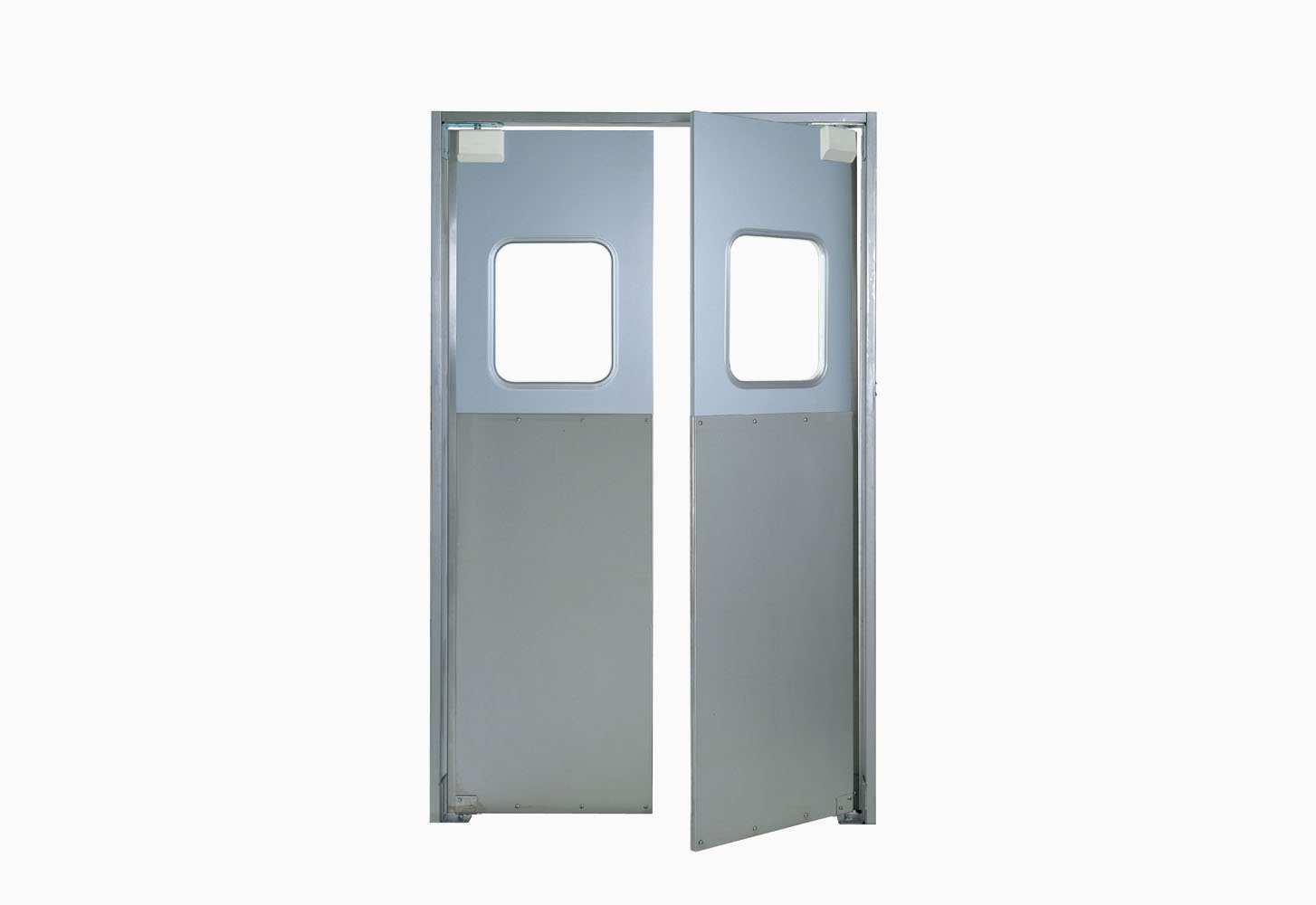

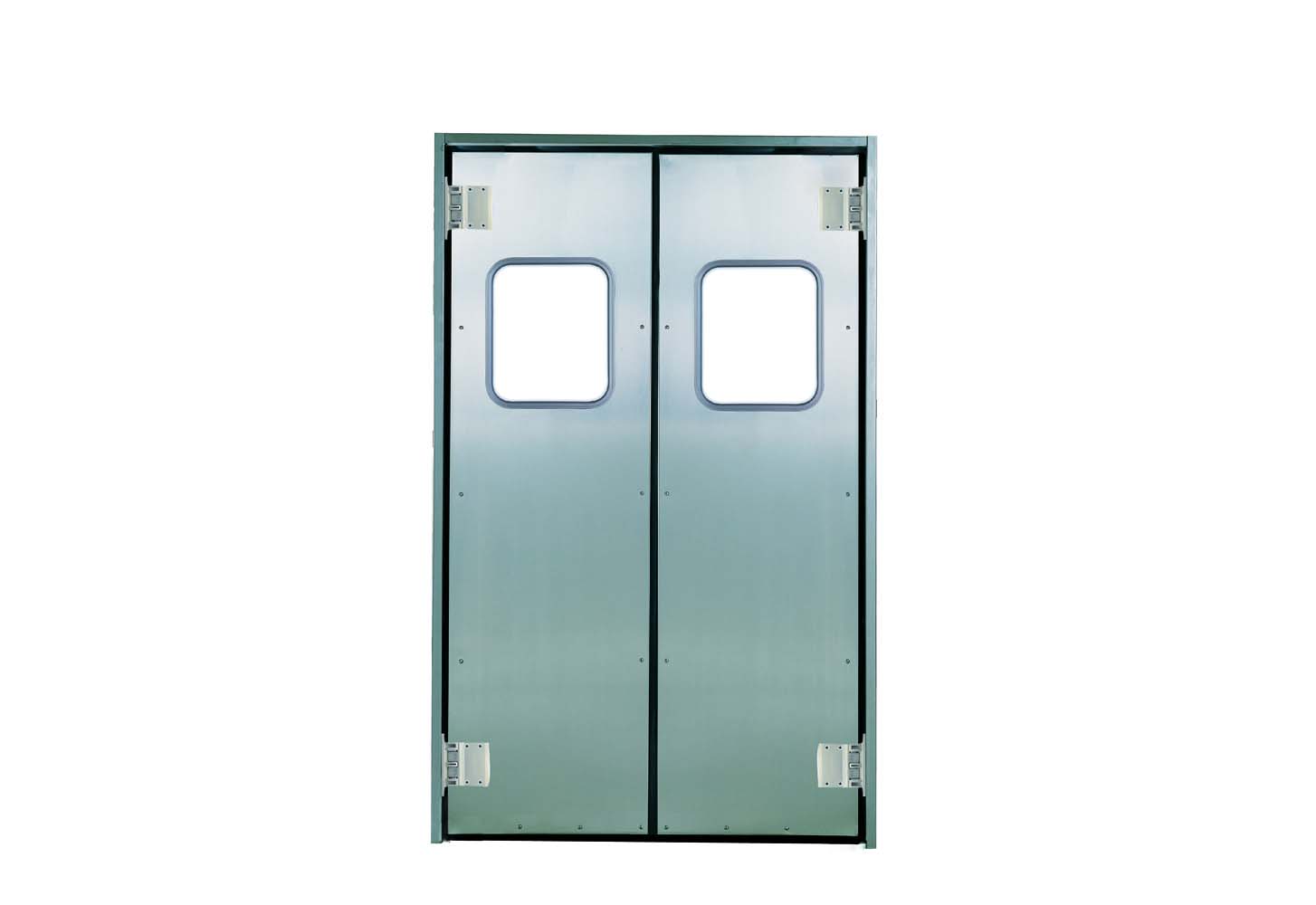

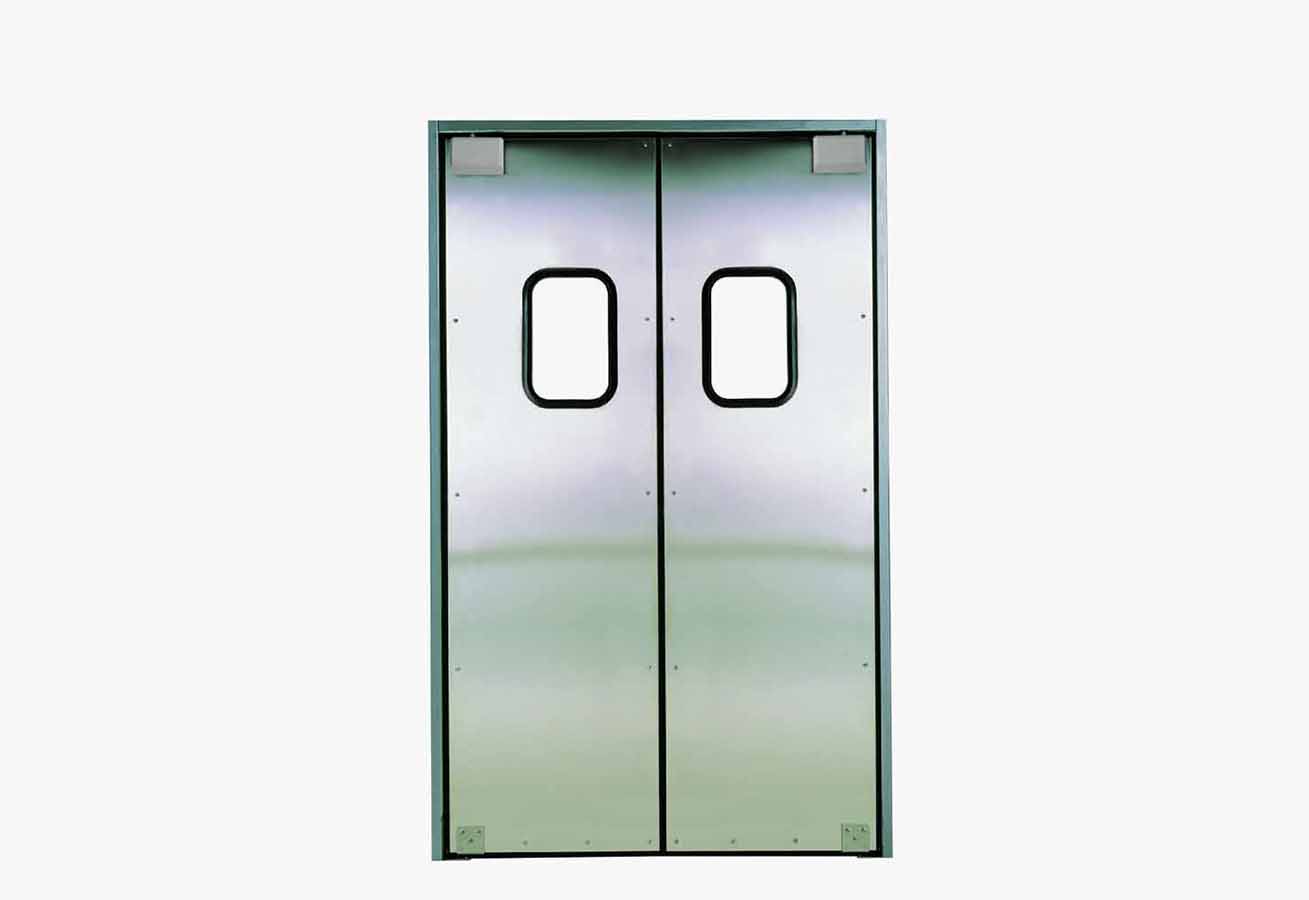

SCP-5/SCP-3
Our best-selling standard models
UNIFLOW SCP offer durability associated with stainless steel. They are constructed of a composite wood core（lumber-core） and clad on both sides with stainless steel/aluminum panels.

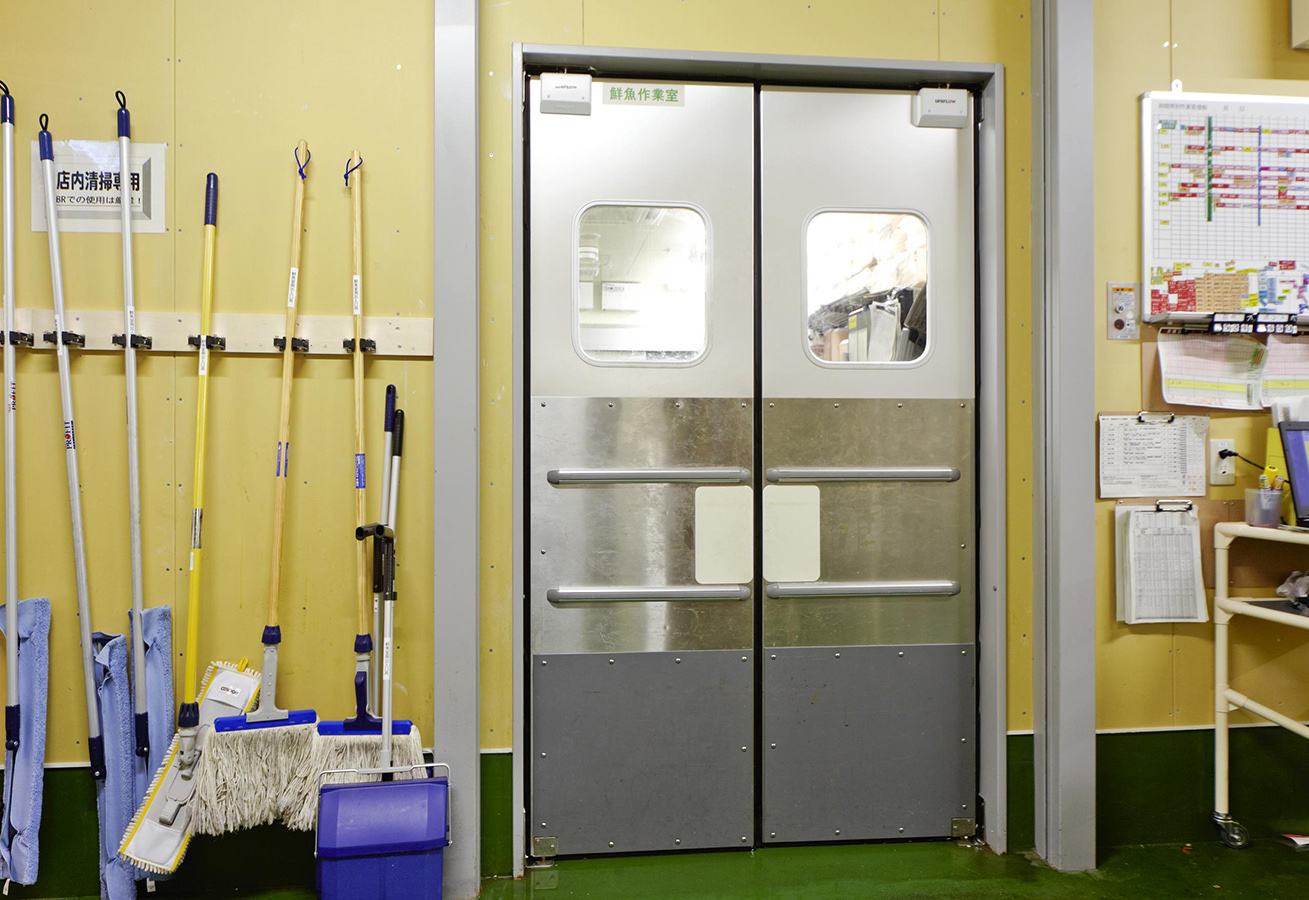

SCP traffic doors are installed in a variety of facilities such as the backyard of stores, factory workspaces and offices.
SCP-5 and SCP-3 have the same functions with different designs.
Main component : Lumber-core
Surface material:Stainless steel／Special aluminum alloy(For the SCP-3, stainless steel only)
Window : Clear acrylic
Window frame :Aluminum

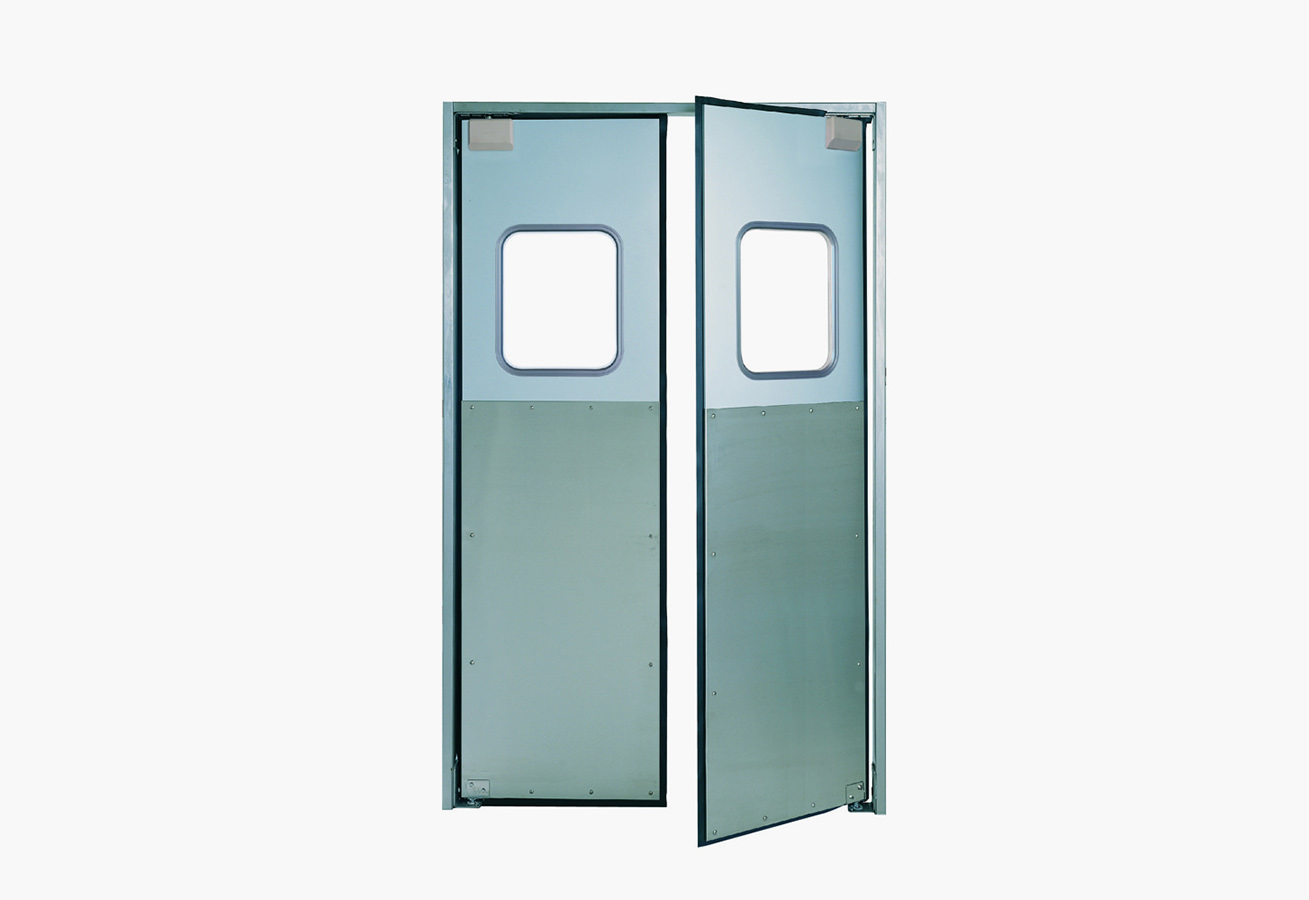

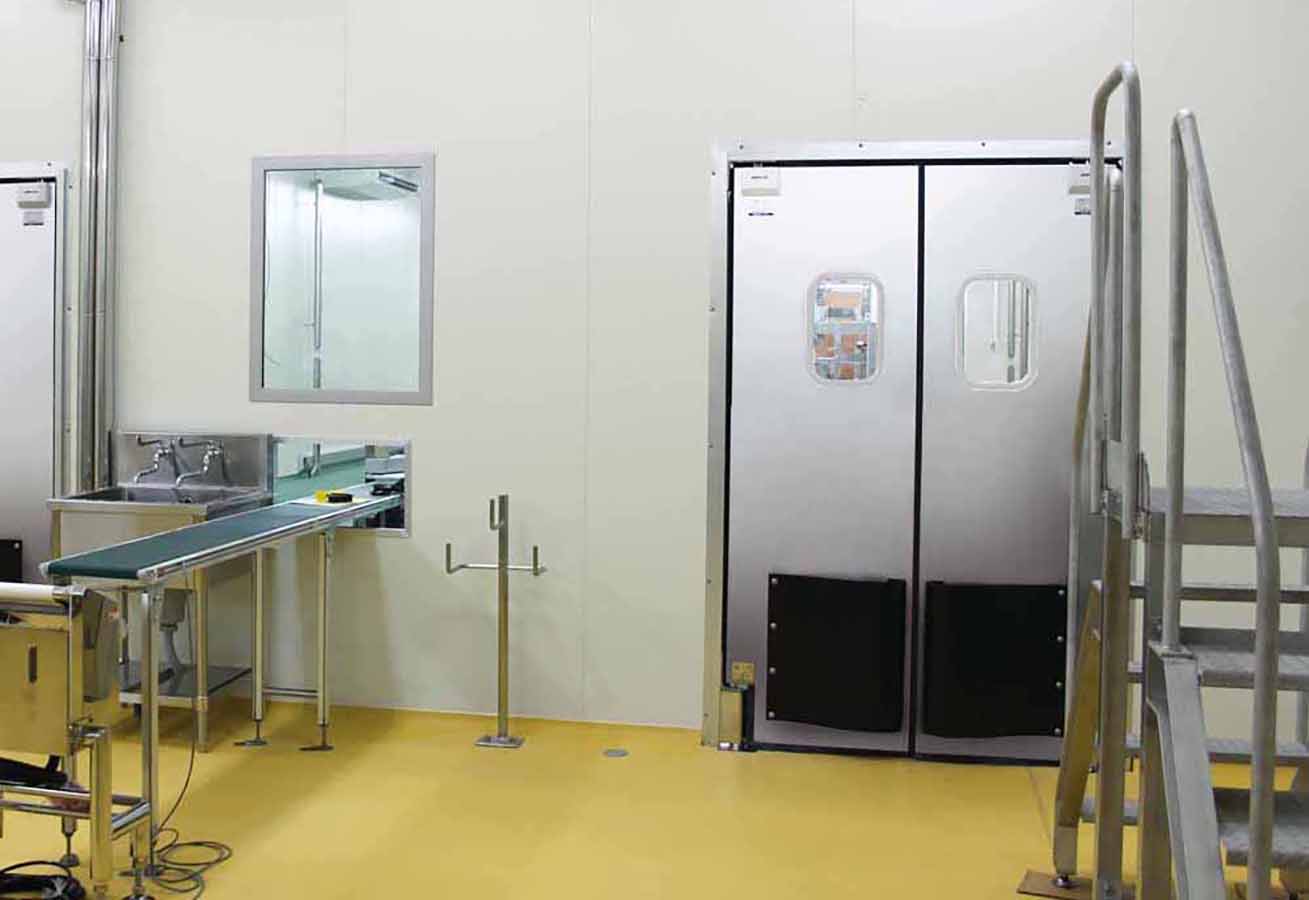

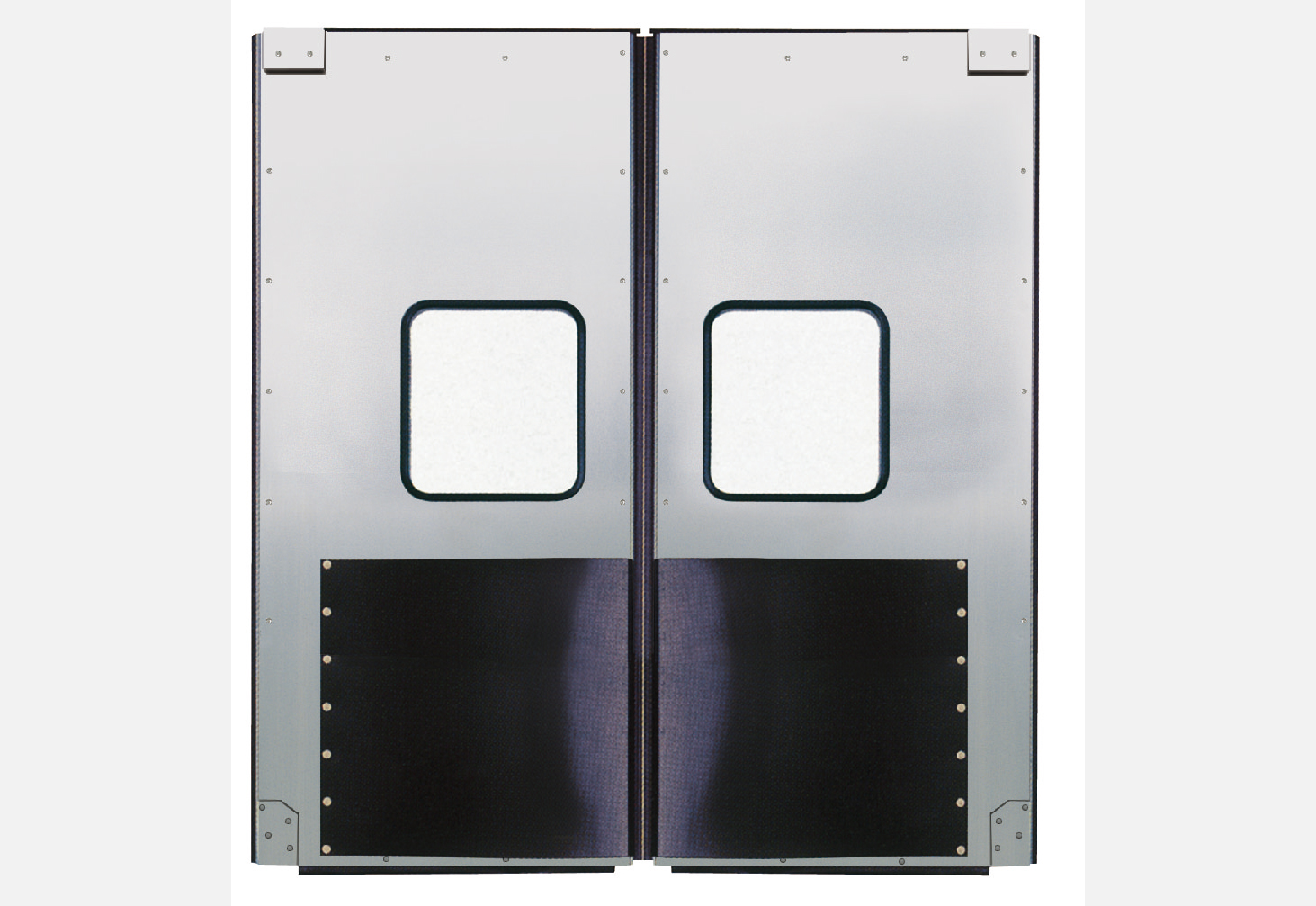

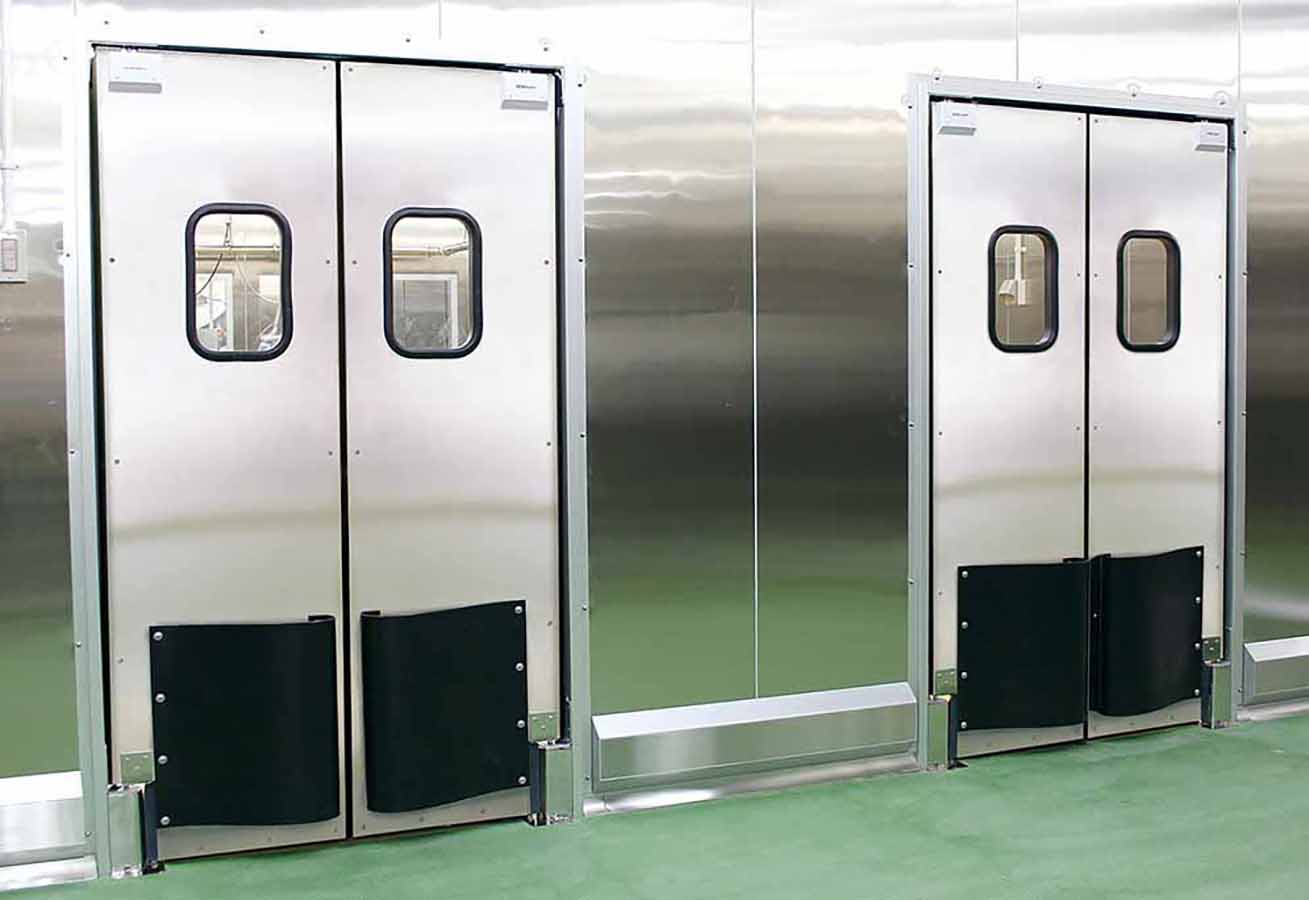

SCG-1/SCG-3
Air tight model.
UNIFLOW SCG has full perimeter gasketing.The gaskets enhance the airtightness at the opening, reducing energy consumption in air conditioning.
Energy and cost efficient for application in refrigerating rooms and food processing area.
Highly effective where sound, environmental barriers (such as insects and dust) are required.
SCG-1 and SCG-3 have the same functions with different designs.
Main component : Lumber-core
Surface material:Stainless steel／Special aluminum alloy(For the SCG-3, stainless steel only)
Window : Clear acrylic
Window frame :Aluminum
Seal: Full perimeter gasketing

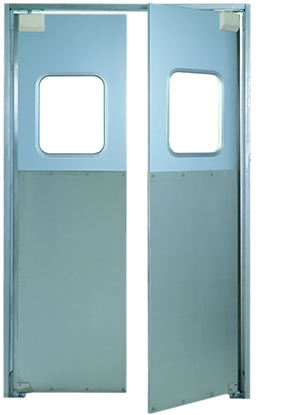

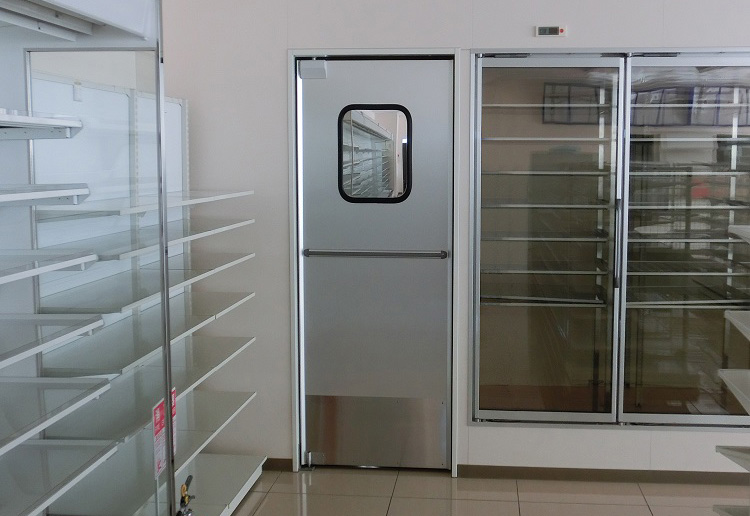

LWP-3
Lightweight model.
UNIFLOW LWP-3,the door body is constructed of 1.6cm thick tempered aluminum that creates a durable and flexibility. A lightweight model suitable for pedestrians that opens smoothly with a finger touch.
We recommended for various spaces, such as entrance to backrooms of stores, work rooms in factories, offices and etc.
・Durable and impact resistant.
・Ideal for pedestrian traffic.
Main component:Special aluminum alloy
Window : Clear acrylic
Window frame : Synthetic rubber

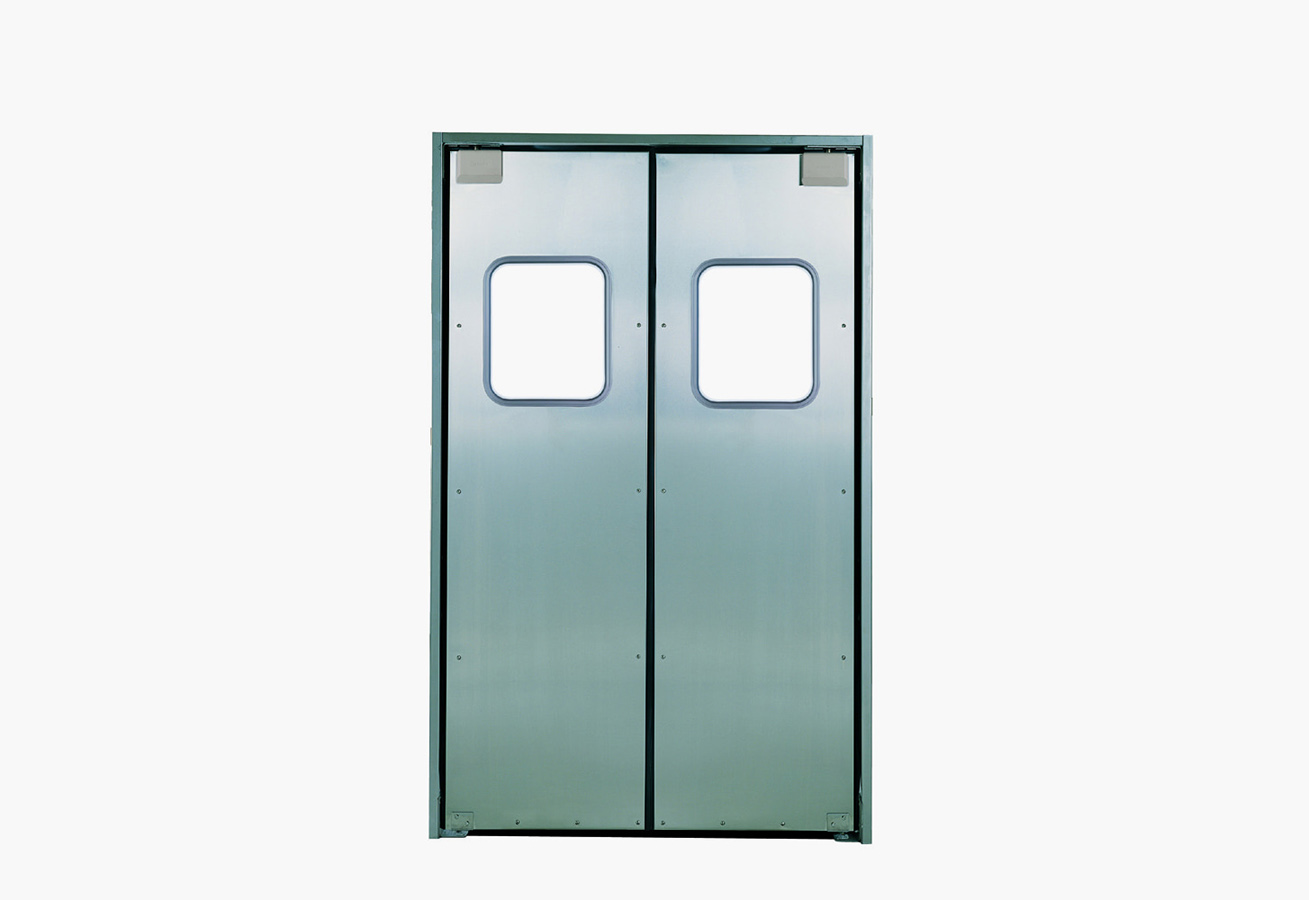

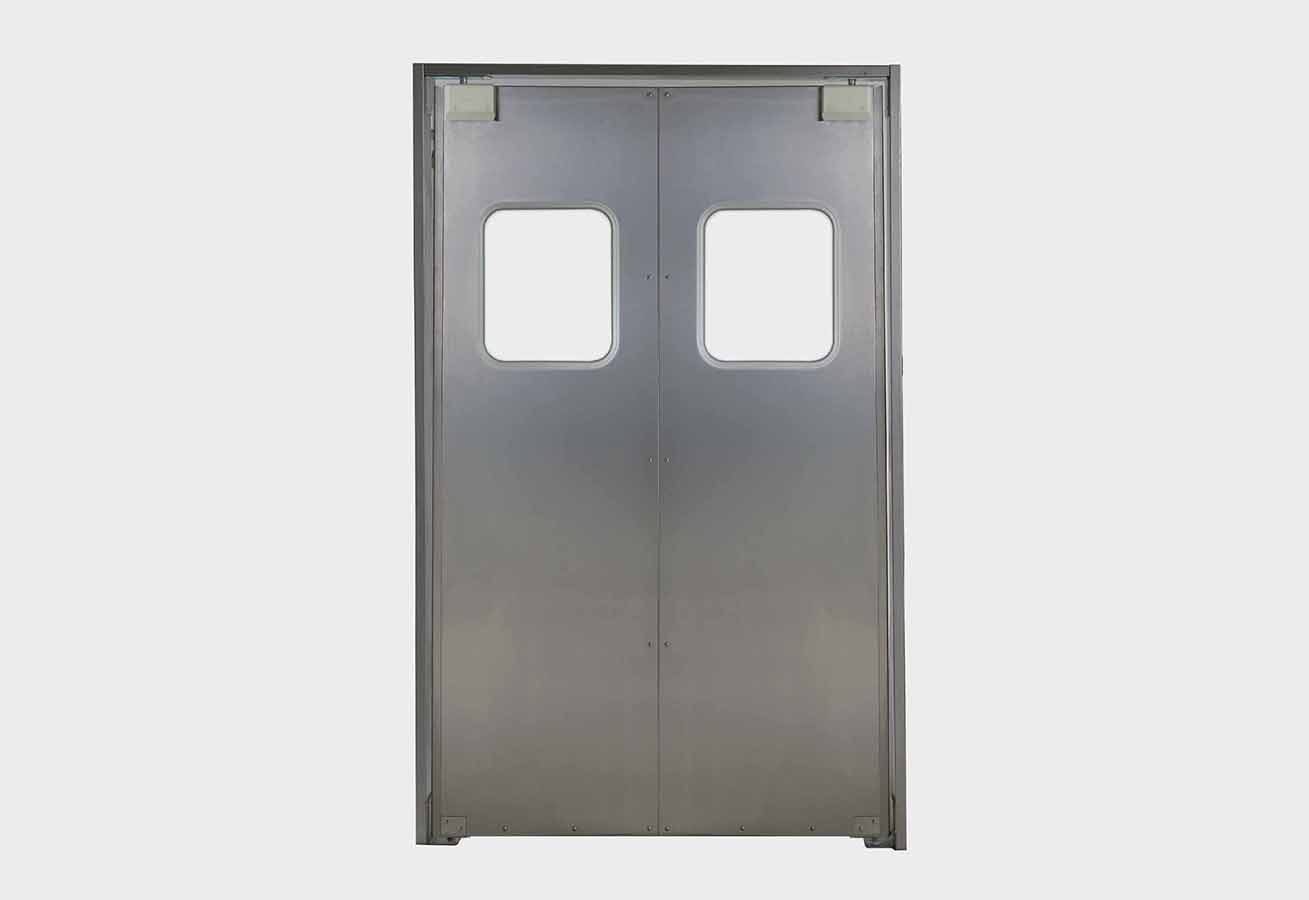

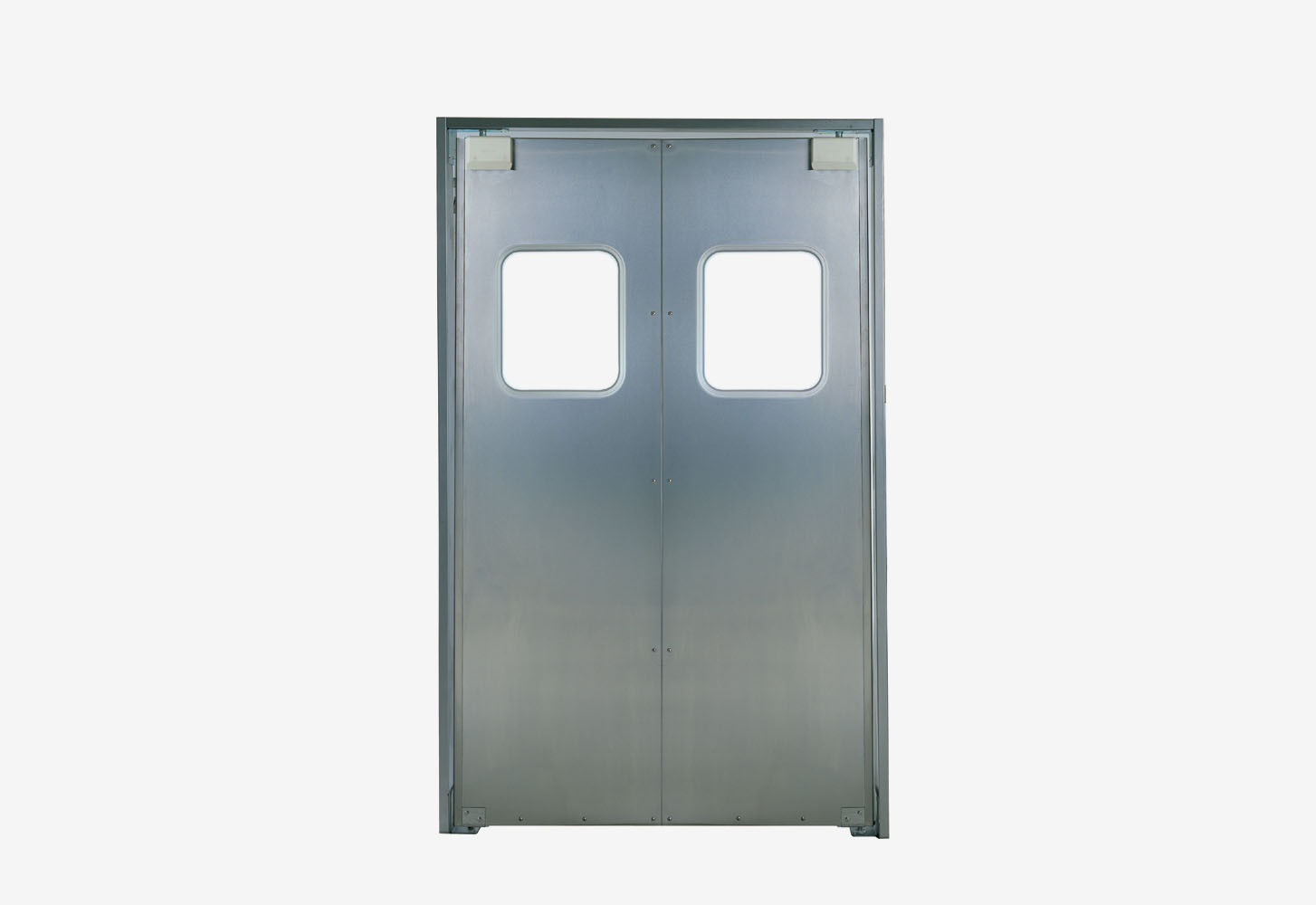

AL-3
Whole surface aluminum model.
UNIFLOW AL-3 is constructed robust composite wood core (lumber-core) and clad full height on both sides with 0.6cm Special aluminum alloy.
It is a popular model having unique and sharp texture of aluminum.
An even flat finishing on the door surface without use of screws is suitable for decoration using a decorative sheet.
Standard vision panels are set in aluminum frame.
Main component:Lumber-core
Surface material:Special aluminum alloy
Window : Clear acrylic
Window frame:Aluminum

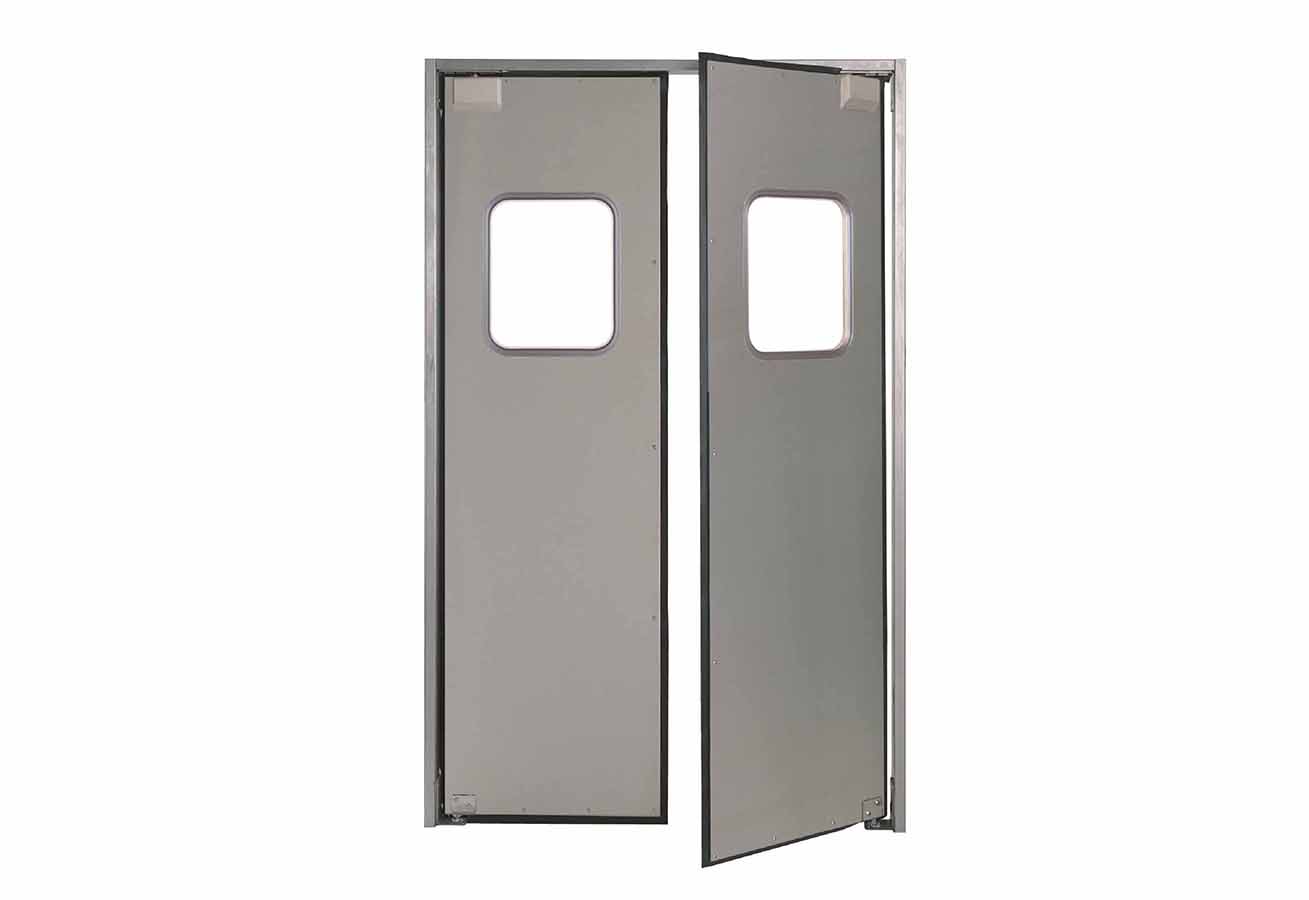

ECO SWING SCGR-3/SCPR-3
(With gasket/Without gasket)
Washable sanitary model.
UNIFLOW ECO SWING,SCPR-3/SCGR-3 is constructed robust and water resistant plastic core and clad on both sides with special stainless/aluminum alloy.
ECO SWING is a washable door. These models are recommended for stores and food factories where HACCP system is required.
・Lightweight and strong, the plastic core material is less likely to deteriorate ensuring hygene and long product life.
・Improved heat insulation performance is approximately 20% greater than the standard model (compared with the SCP model).
・The standard model SCPR, and with seal gaskets SCGR.
・Recyclable acrylic window material is used as window material.
Main component:Honeycomb core (TECCELL)
Surface material:Stainless steel／Special aluminum alloy (For the SCPR-3, stainless steel only)
Window : Clear acrylic
Window frame:Aluminum
Seal: Full perimeter gasketing(SCGR-3 only)

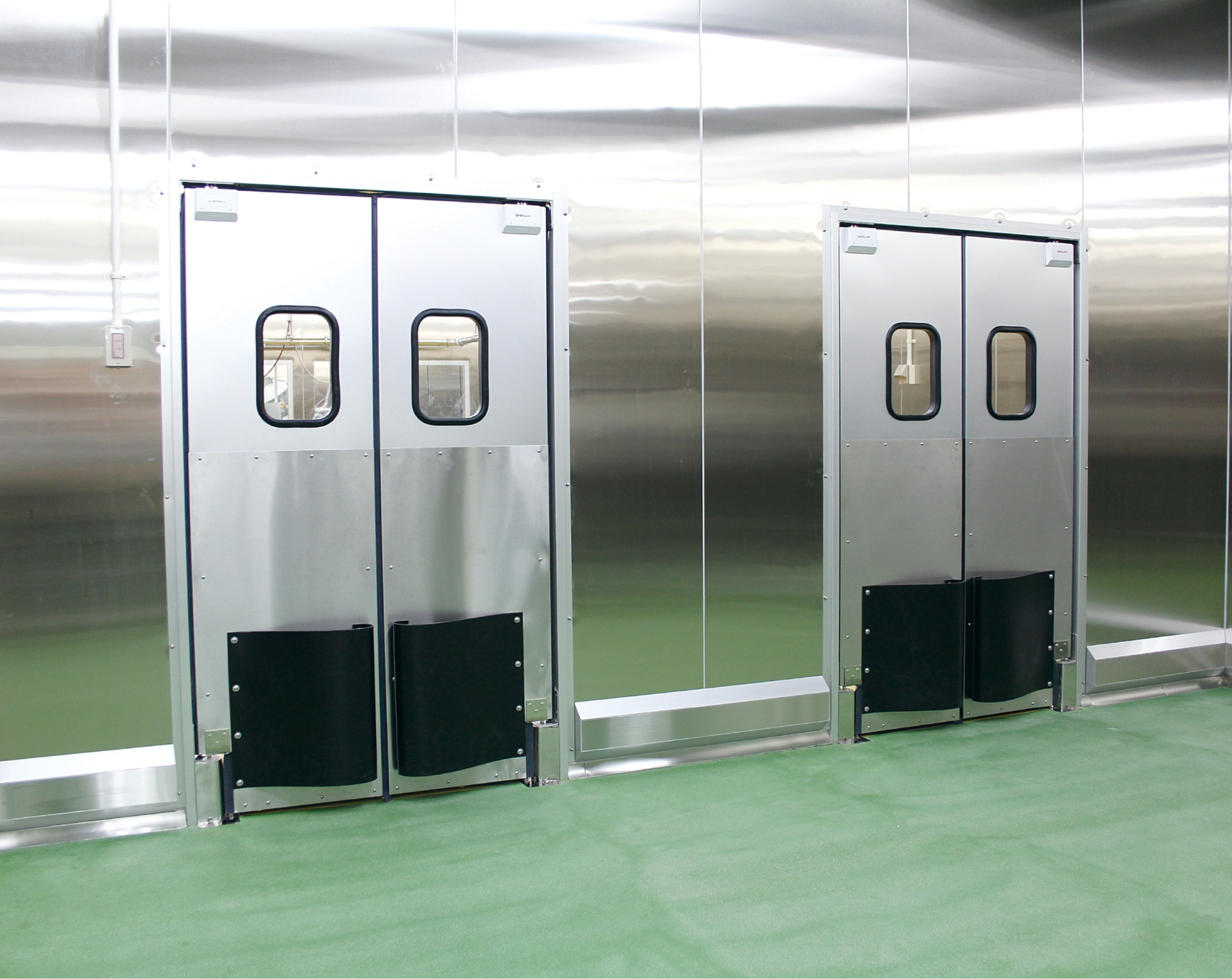

FCG-3
Insulated model.
UNIFLOW's FCG door is insulated models. Especially perfect option for refrigerating rooms.
FCG is constructed of five layers of structure and hard urethane foam for heat insulation and core material and a perimeter seal with gasket. FCG's heat insulation performance is three times that of the standard model (compared with the SCP).
They provide visual and thermal separation. It designed to facilitate the flow of traffic in a variety of applications, it can be manufactured to fit any size opening. With the highest level of durability and heat insulating property, it is the perfect option for refrigerating rooms.
Main components :Lumber core, Hard urethane foam
Surface material :Stainless steel
Window :Clear acrylic (Double-pane)
Window frame :Synthetic rubber
Seal: Full perimeter gasketing(PVC)
V-hinge SCG-3V/LWP-3V
Wind-resistant model.
UNIFLOW's "V-Hinges" are specialized hardware for adding wind resistance to doors.V-Hinges dramatically improve the wind resistance of doors. It also prevents the door from being pulled by air conditioning as well as wind.
The locking mechanism prevents the door from being pushed by wind.
Closing force can be adjusted according to the pressure on the door caused by wind or air conditioning.
Material of V-hinge: Polyester
V-hinge SCG-3V/LWP-3V (Available models with the V-hinge: SCP, SCG, LWP, ECO SWING)

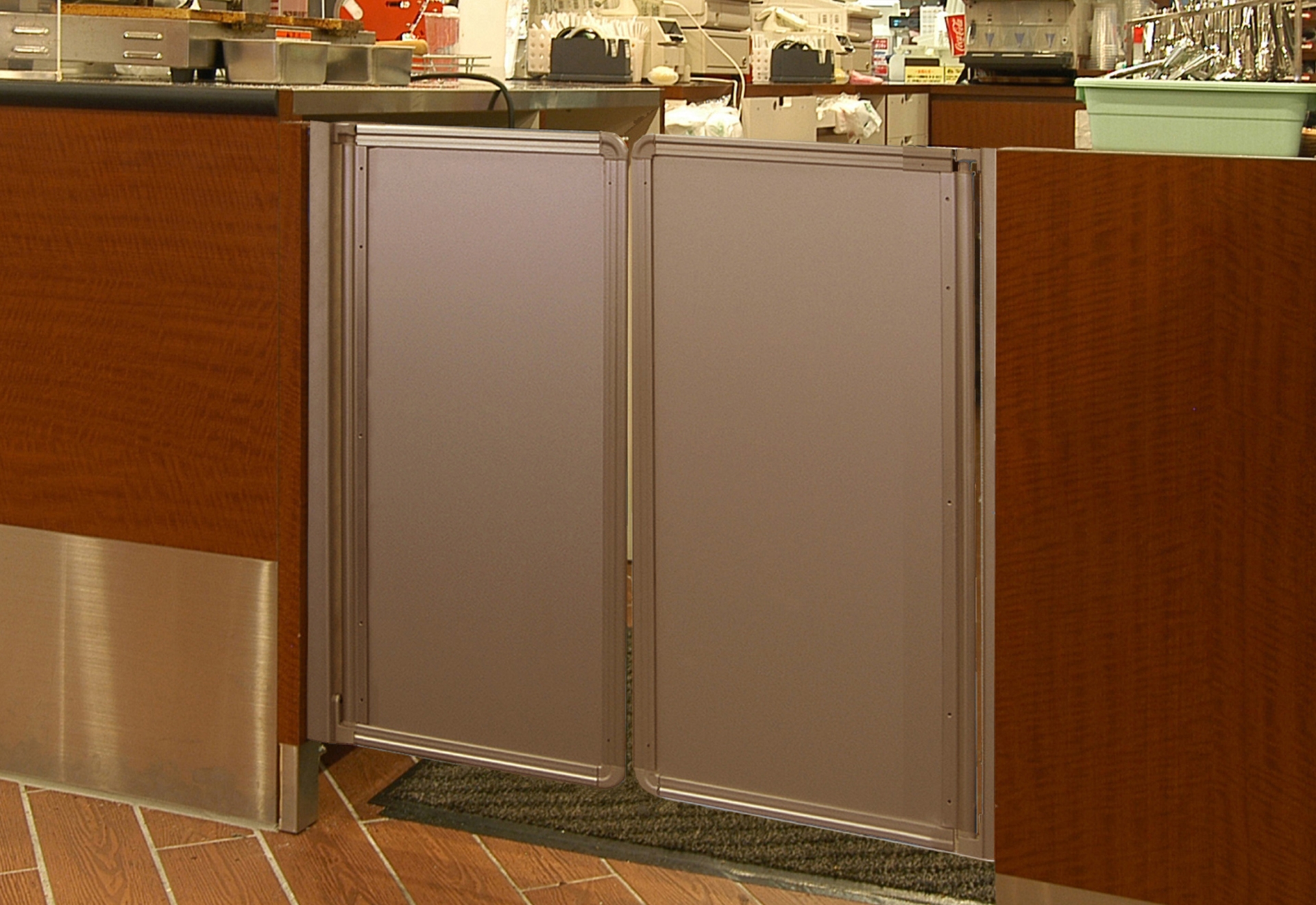

MINI SWING
Durable, light-weight and economical swinging café door.
UNIFLOW MINI SWING MP-1a is quick and easy to install.
It opens with a light touch and closes gently after passing due to does not use springs but only gravity. It is used in a wide range of sectors such as fast food chains and convenience stores.
We offer a variety of colored vinyl sheet for surface of the door to suit your interior.
Surface material:Special aluminium alloy (Standard silver)
Frame : Aluminium

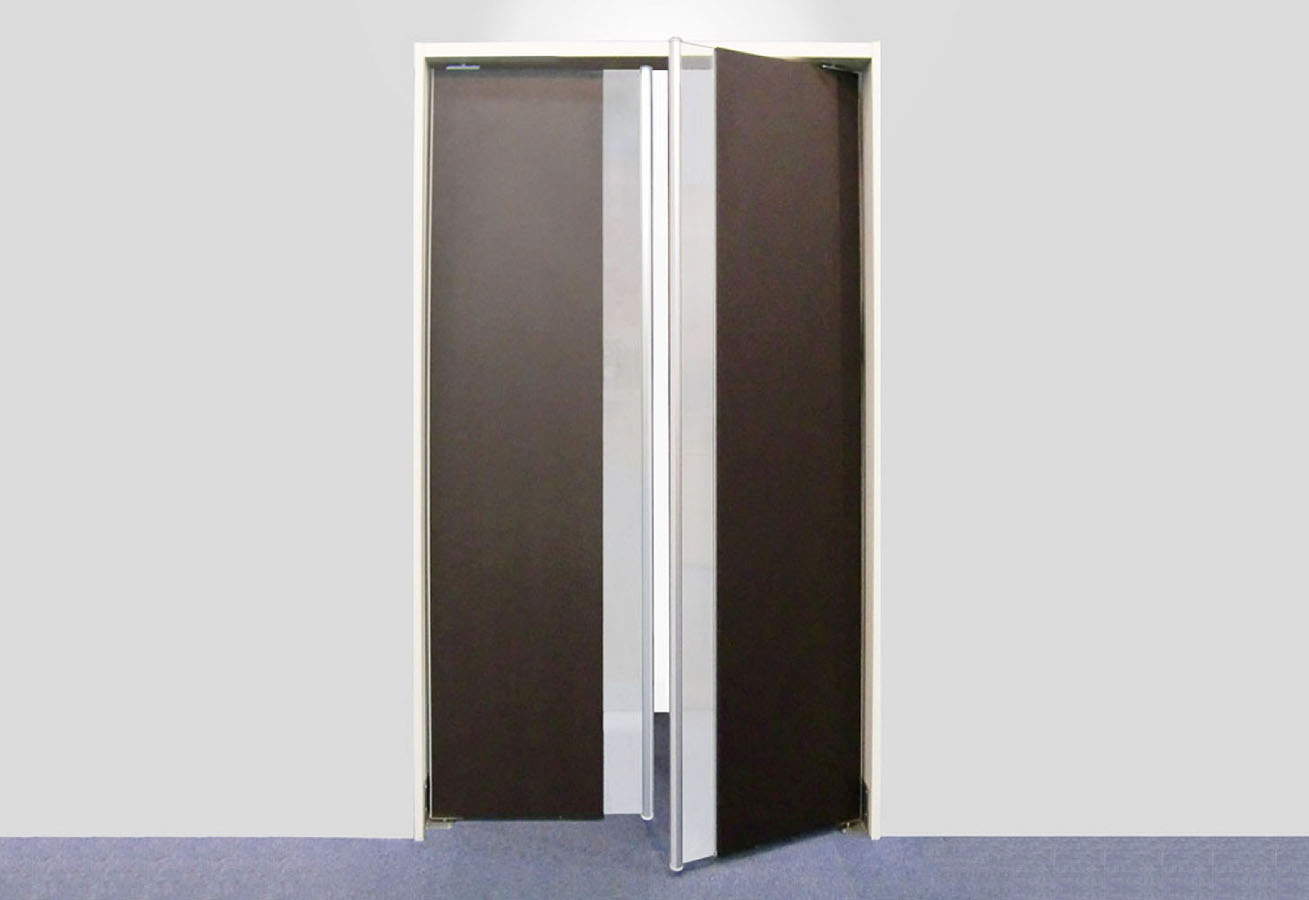

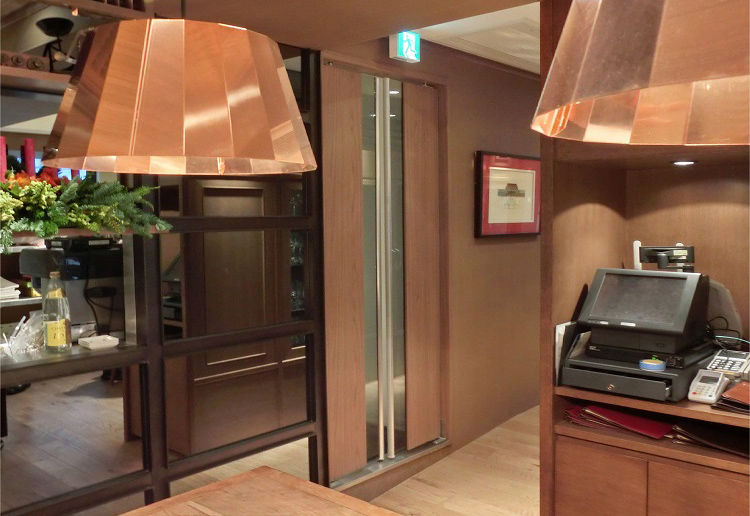

SMART SWING SMT
New model that incorporates functionality and design
It is recommended for retail stores, restaurants and hotels that emphasize on quality and originality.
Full-height windows
The new design achieves both visibility and design. The window material is scratch-resistant hard-coated acrylic.
Flat finish
The surface is flat with no exposed hinge covers or screws. Decorative sheets can be affixed with good appearance.
Safety
To prevent injury, soft rubber is attached to the opening and frame sides of the door.
*Spring bumpers (optional) cannot be installed on this model.
Main component:Paper-made core
Surface material:Galvanized steeled plate
Door edge pipe (open side):AluminiumΦ30
Window :Acrylic hard coat (transparent)

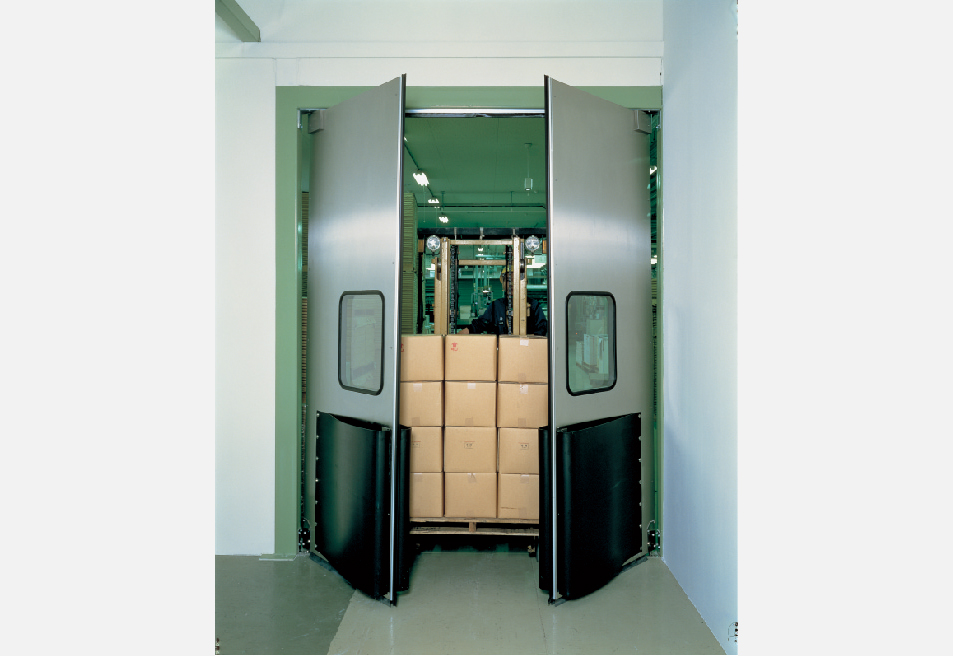

SN-1
Forklift compatible, superior in durability and impact resistance.
Also called "Super-Swing", the SN-1 is designed for large opening, where there is a forklift traffic.
・High impact resistance and excellent durability to withstand forklift traffic.
・High airtightness that can prevent the entry of dust and insects.
・Will not stop due to power outages as speed doors do.
・Recommended for factories, distribution centers, cold rooms, etc.
Main components:Steel pipes, Heat insulation foam
Surface material:Stainless steel
Window :Polycarbonate
Window frame:Synthetic rubber
Seal: Full perimeter gasketing(PVC)

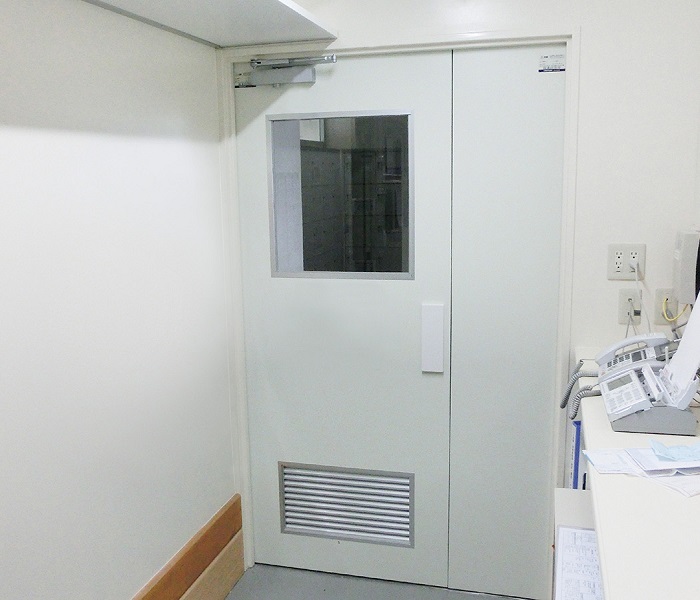

LSD（Hinged door）
A hinged door for indoor use that is both lightweight and durable.
Custom-made hinged lightweight steel door for a wide range of applications.The door can be customized to match the environment in response to each user.
